DETROIT PISTON COMPRESSORS 8 BAR & 12.5 BAR
destroit piston compressor
destroit piston compressor

destroit piston compressor
destroit piston compressor

destroit piston compressor
destroit piston compressor

destroit piston compressor
destroit piston compressor

1/7

46a Wattel Ave, Golf Park, Meyerton, 1961, South Africa

Single Stage & Two Stage Piston Compressors

The reliability of these machines is second to none, with air-output to match.

Detroit piston air compressors offer exceptional quality and affordability and are well known to be the best choice brand for piston air compressors.

DIY Range
Our DIY range of compressors offer European design and reliability. Both compact and easy to move about, these direct drive machines are perfect for your garage jobs.
Single Stage
Starting the range with a 90L 2hp, we cater for the small home-based workshop or car-wash. The range extends up to a 20hp work-horse, delivering 2000LPM of air output at 8 bar max operating pressure.
Two Stage
Starting the range with a 200L 5.5hp, we cater for the small workshops, tyre fitment centres etc. The range extends up to a 20hp work-horse, delivering 1500LPM of air output at 12,5 bar max operating pressure.
Features
Large displacement: Two- and three-cylinder configurations are used to ensure low RPM and heat. Reducing RPM and heat provides the benefit of lower noise levels and longer service life.
Efficient valve design: Key to simple maintenance and repair processes. Keeping maintenance costs and repair times to a minimum is always essential for clients. With a simple, yet very efficient valve structure, service life is long and repair costs and time are kept to a minimum.
Schneider direct-online-starter systems: Built-in high current protection, provide
both motor protection and performance stability to the electric motor and are capable of trouble-free service in harsh conditions.
Reliable switch gear: Used on the entire range of reciprocating piston compressor models. The time tested Lefoo pressure switch is able to provide years of trouble-free service at a fraction of the cost one may expect.
Quality paintwork: Essential to corrosion prevention; powder coating of pressure vessels provide good protection against corrosion and gives the machine an excellent finish. All powder coating is done to European standards with a textured finish which is aesthetically pleasing.
Data presentation: Various comprehensive data plates are used to provide information such as serial number, date of manufacture, weight, dimensions, air delivery, electrical requirements and design codes. Artwork provides information aimed at the consumer for quick reference to the machine's configuration, pressure and air delivery.
DIY Piston Air Compressors
destroit piston compressor
destroit piston compressor

destroit piston compressor
destroit piston compressor

destroit piston compressor
destroit piston compressor

1/2

The DIY Direct Drive Air Compressor range works excellently for small air volume requirements. DIY machines are designed to be light, portable, and easy to operate, making utilisation a simple and hassle-free process. Careful design ensures high efficiency and good maintainability helping prolong the machine's working life, resulting in less overall spend for the customer.



The Detroit Air Direct Drive Air Compressor comes with an induction motor complete with overload protection to keep the machine running smoothly throughout use.

Table 5.jpg
Single Stage
Industrial Piston Air Compressors
DETROIT W-1
DETROIT W-1

DETROIT W-1
DETROIT W-1

DETROIT V-0
DETROIT V-0

DETROIT W-1
DETROIT W-1

1/3

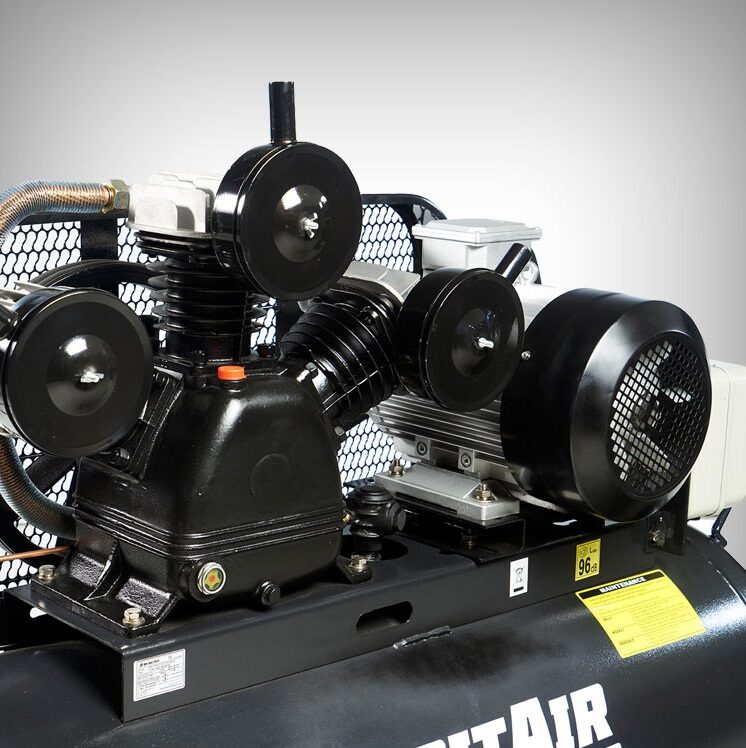

The Single-stage Air-cooled Stationary Belt-drive compressor range is a full industrial heavy-duty series. It employs a low RPM, multi-cylinder, cast iron pump configuration using SKF bearings to ensure a longer service life; low oil consumption, low noise and good heat dissipation are part of the design.

The advanced machining process employed in manufacturing ensures excellent quality and efficiency. The Detroit Air range of belt-driven
compressors are built to last and deliver exceptional value and quality in a range of sizes to suit your requirements.

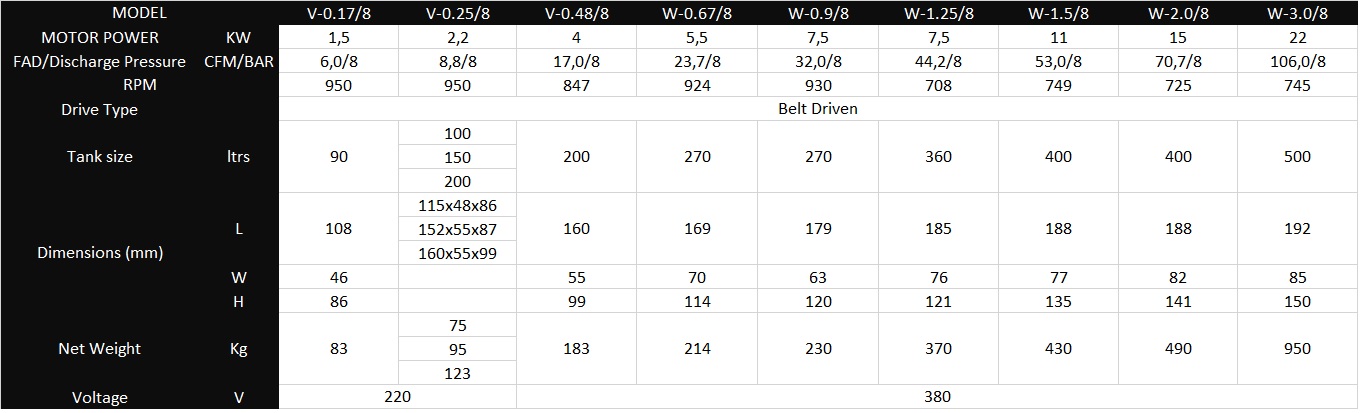

Table 6.jpg
Two Stage
Industrial Piston Air Compressors
DETROIT W-1
DETROIT W-1

DETROIT W-1
DETROIT W-1

DETROIT V-0
DETROIT V-0

DETROIT W-1
DETROIT W-1

1/3

The Two-stage Air-cooled Stationary Belt-drive compressor range is a full industrial heavy-duty series. It employs a low RPM, multi-cylinder, cast iron pump configuration using SKF bearings to ensure a longer service life; low oil consumption, low noise and good heat dissipation are part of the design.

The advanced machining process employed in manufacturing ensures excellent quality and efficiency. The Detroit Air range of belt-driven
compressors are built to last and deliver exceptional value and quality in a range of sizes to suit your requirements.

Table 7.jpg
DETROIT DIRECT DRIVEN PISTON AIR COMPRES
DETROIT DIRECT DRIVEN PISTON AIR COMPRES
DETROIT W-1
DETROIT W-1
DETROIT V-0
DETROIT DIRECT DRIVEN PISTON AIR COMPRES
DETROIT W-1
DETROIT DIRECT DRIVEN PISTON AIR COMPRES
1/1
